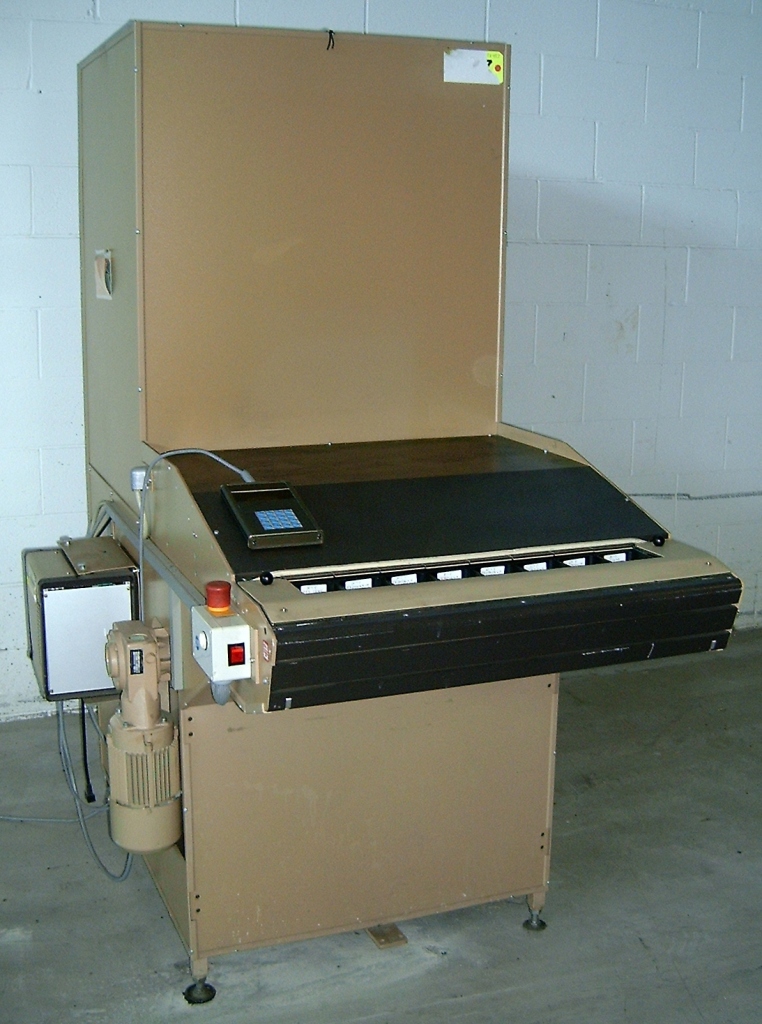

Royonic 200

Small parts automatic storage retrieval system

This system is ideal for storage and fast retrieval of small components.  It has 624 addressable bins which rotate on a chain drive within the storage cabinet. To retrieve a part, the operator enters the bin number on the keypad. The machine presents the requested bin number and opens the access door to only the requested bin.  This creates a very controlled system for small parts storage and retrieval.  Typical applications include small part storage for a repair and rework station.  It can also be used in conjunction with a Contact System CS-400 or other component assembly station.  This system can be interfaced to a separate PC which can control the bin requests and could also keep track of inventory counts.

624 bins (78 rows x 8 bins/row)
Bin dimensions: approx. 2-1/2" x 3-3/8" x 1-1/2" deep
Enter bin number on keypad pendant to retrieve requested storage bin.
Computer control can be accessed through serial (RS232C) interface.
Approximate dimensions: 6' x 3' x 5' (HxWxD)
